PAYLOAD AND DURABILITY
28m³ QA QA PBS
50m³ TRA TRA PBS
50m³ / 45m³ / 40m³ / 25m³ / 18m³
40m³ twin bin
STANDARD SPECIFICATION
The PRBB Edge:

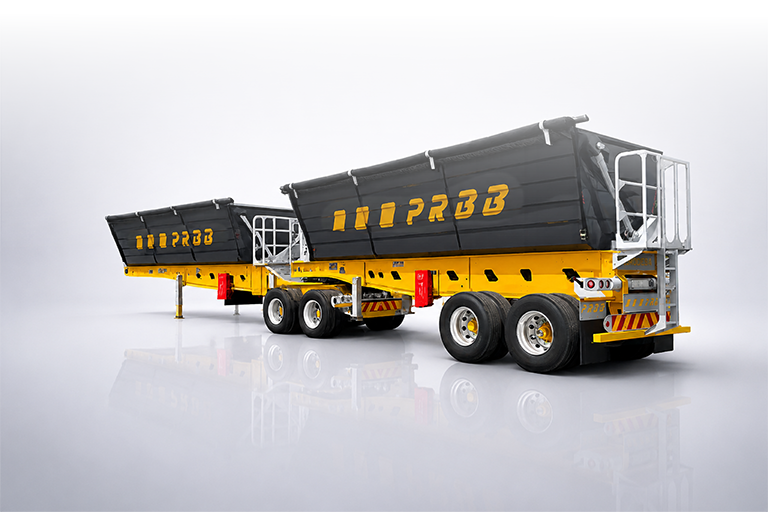

PRBB Side Tippers combine innovative design, precision engineering, and premium materials for unmatched Payload and Durability. Built from high-tensile steel, the bins sit deeper for a lower centre of gravity, improving towing stability and safer cornering.
U-shaped corner pipes “float” to absorb movement, reducing stress and preventing cracks. With a tipping angle of 42.8º, PRBB Side Tippers deliver superior performance and reliability load after load.
Our Side Tippers include the following:
Safety Set – (1 x W/Triangle, 1 x Wheel Spanner, 2 x Wheel Chocks)
Fire Extinguishers inside Plastic Box – 1 Per Trailer
License Holder – Double Type
Chassis Assemblies – High Tensile Steel
Customized Nameplate (Your company name)
Load Bin – High Tensile Steel – GR700
PRBB Removable Support Legs (For Empty Load Support)
| 28m³ Quad-Axle Quad-Axle PBS Side Tipper | 50m³ PBS Side Tipper Interlink | Side Tipper 50m³ - S/Single Aluminium | Side Tipper 45m³ - S/Single Aluminium | Side Tipper 25m³ - S/Single Aluminium | Side Tipper 20m³ - S/Single Aluminium | Side Tipper 18m³ - S/Single Aluminium | 40m³ Side Tipper Twin Bin Tridem Semi - Dual Wheels Steel | |
|---|---|---|---|---|---|---|---|---|
| Tare | 14 780 kg | 13 590 kg | 10 106 kg | 10 060 kg | 8 830 kg | 8 722 kg | 8 562 kg | 8 570 kg |
| Payload | 62 558 kg | 48 801 kg | 36 760 kg | 36 464 kg | 37 694 kg | 37 802 kg | 37 962 kg | 30 793 kg |
| GCM | 87 500 kg | 73 500 kg | 56 000 kg | 56 000 kg | 56 000 kg | 56 000 kg | 56 000 kg | 39 363 kg |
PAYLOAD AND DURABILITY
28m³ QUAD-Axle Quad-Axle Side Tipper
| 28m³ Quad-Axle Quad-Axle | |
|---|---|
| Tare | 14 780 kg |
| Payload | 62 558 kg |
| GCM | 87 500 kg |

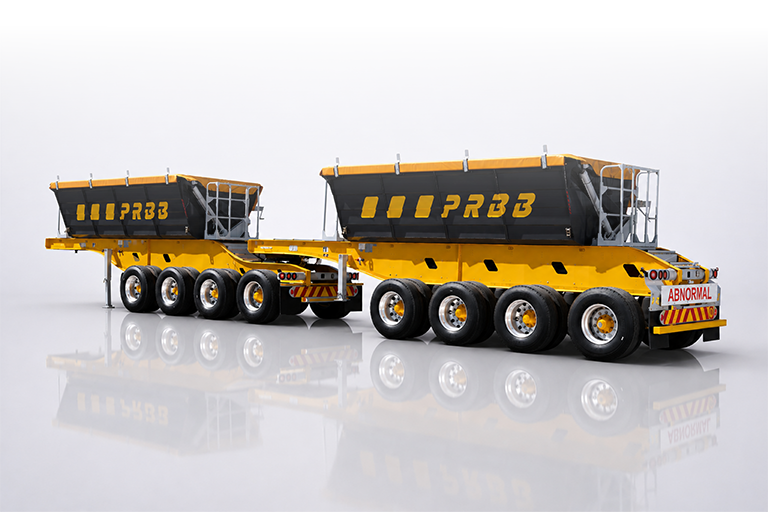

50m³ PBS Side Tipper Interlink
| 50m³ PBS Side Tipper Interlink | |
|---|---|
| Tare | 13 590 kg |
| Payload | 48 801 kg |
| GCM | 73 500 kg |
Side Tipper 50m³
| Side Tipper 50m³ - S/Single Aluminium | |
|---|---|
| Tare | 10 106 kg |
| Payload | 36 760 kg |
| GCM | 56 000 kg |
Side Tipper 45m³
| Side Tipper 45m³ - S/Single Aluminium | |
|---|---|
| Tare | 10 060 kg |
| Payload | 36 464 kg |
| GCM | 56 000 kg |
Side Tipper 25m³
| Side Tipper 25m³ - S/Single Aluminium | |
|---|---|
| Tare | 8 830 kg |
| Payload | 37 694 kg |
| GCM | 56 000 kg |
Side Tipper 20m³
| Side Tipper 20m³ - S/Single Aluminium | |
|---|---|
| Tare | 8 722 kg |
| Payload | 37 802 kg |
| GCM | 56 000 kg |
Side Tipper 18m³
| Side Tipper 18m³ - S/Single Aluminium | |
|---|---|
| Tare | 8 562 kg |
| Payload | 37 962 kg |
| GCM | 56 000 kg |

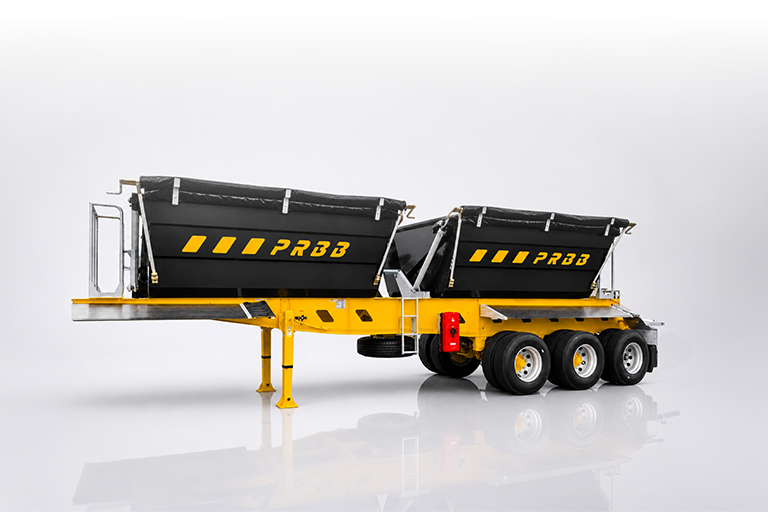

40m³ Side Tipper Twin Bin Tridem Semi
| 40m³ Side Tipper Twin Bin Tridem Semi - Dual Wheels Steel | |
|---|---|
| Tare | 8 570 kg |
| Payload | 30 793 kg |
| GCM | 39 363 kg |
STANDARD SPECIFICATION
The PRBB Edge:
PRBB Side Tippers combine innovative design, precision engineering, and premium materials for unmatched Payload and Durability. Built from high-tensile steel, the bins sit deeper for a lower centre of gravity, improving towing stability and safer cornering.
U-shaped corner pipes “float” to absorb movement, reducing stress and preventing cracks. With a tipping angle of 42.8º, PRBB Side Tippers deliver superior performance and reliability load after load.
Our Side Tippers include the following:
Safety Set – (1 x W/Triangle, 1 x Wheel Spanner, 2 x Wheel Chocks)
Fire Extinguishers inside Plastic Box – 1 Per Trailer
License Holder – Double Type
Chassis Assemblies – High Tensile Steel
Customized Nameplate (Your company name)
Load Bin – High Tensile Steel – GR700
PRBB Removable Support Legs (For Empty Load Support)
